sold by the meter 8 wire, twisted pair wires common shielding Installation cable according to DIN EN 50441; VDE 0815 JY (ST) Y 4x2x0, 6mm Insulation: PVC jacket Suitable for installation in dry and damp rooms. Surface or buried, for fixed installation in outdoor areas. Depending on the current consumption of the connected consumer, ensure sufficient cross-section. 0.6 mm = 0.28 mm ² color assignment 1a red 1b blue 2a white 2b yellow 3a white 3b green 4a white 4b brown

Open door access controllerAccess control system for Wiegandable access readersorcontrol unit as EMA arming/disarming device1000 memory locations for transponders or PIN codesAccess with RFID only, PIN only or RFID + PINSingle RFID tags and PINs can be deleteted separatlyExternal door release button can be connectedLED output for display on the readerOutput adjustable via jumperVoltage is switched directly through (factory setting) or floating relay contact Change-over contactPulse 1-99 seconds or Dynamic ON-OFF-OFF-OFF....Power-fail-safe EEPROM memoryBlock storage with sorted transponders Enter the first UID number and quantity, ready (e. g. 1000 pcs. in approx. 2 minutes)No PC connection neededCopy the entire memory contents into one or more sBoards as a "backup copy" or as a fast creation for several doorsWiegand input 26-37bit e. g. for RFID readers EM4102, HITAG, ISO14443, LEGIC, UHF, etc. with or without PIN-code keypad, magnetic card reader, fingerprint reader, biometric face recognition.When using ISO14443 wall scanners, please always order the ISO14443 programming card set as well, or alternatively use the supplied remote controlDimensions: 65x54x19mmWeight: 40gOperating temperature: -40°C to 60°CPower supply: 12V DC voltageOutput load: max. 2Aincl. infrared programming device for all changes, settings (password protection 6-digit)incl. programming cards Set for your selected ISO14443 wall readerEnglish instruction manualGerman manual as PDF filePower indicator: LED redLED and signal tones can be switched off Wiring samplesHow do I open the case?Operating instructions (german)Manual (english)AccessoriesProgramming Card Set for ISO14443 ReaderInstallation cableSuitable readers with EM 4102 technologySuitable readers with ISO14443 technologySuitable readers OtherPower suppliesDoor opener

Access Control Multi RFID Reader RFID wall mountable reader for EM4102 and 13,56MHz Full metal housing with concentrated double reading field through the LED barInternational award-winning designPotted waterproof, suitable for outdoor areas TheRFID card reader will beconnected to access controller like sBoaard and SC3000NT via the Wiegand interface.The relay switching takes placein doors,sabotage attempts on the wall readers are therefore ineffective. Material: full metal, finished, Color: cappuccino black Dimensions: 103x48x22 mm Temperature range: -20 ° C to 50 ° C Protection class: IP65 Multiprotocol RFID: 125kHz: EM4102, EM4100, EM4200 Compatible RFID Chip types:13.56 MHz:  compatible to Mifare® Classic 1k and 4k, 4byte and 7byte UID ISO14443A Compatible RFID Chip types: 13.56 MHz: compatible to DESFire® EV1 and EV2 and EV3 , compatible to Ultralight®, NTAG and compatible 7byte UID Power supply: 12V DC, <35mA Operating display: LED bar red Green LED bar and beeper can be controlled Tampering alarm function The cable length to the controller can be up to 100m. Wiegand output: 34 bit for all protocols

Glass touch keypad  and dual frequency RFID access control for EM4102 / 4100/4200 and ISO14443 compatible transponders  Full metal housing with concentrated double reading field through the LED bar and solid PIN code keypad  The use of plastic on the housing could almost be dispensed with.  Potted waterproof, suitable for outdoor areas  Multifunction with PIN code and RFID multi-protocol reader  Standalone function with relay output  Reading function connected to Wiegand connection for evaluation units such as Sboard access controllers and SC3000NT. The relay switching then takes place inside, so attempts at sabotage on the wall reader are ineffective. Technical details: PIN code and RFID reader full metal housing Glass keypad Color: cappuccino black Operating mode: standalone or reader (Wiegand) Dual frequency 125 khz and 13.56 Mhz RFID chip types 125KHz: HID prox, EM4200, EM4102 UID RFID chip types 13.56MHz: ISO 14443 Output format: Wiegand 26 / 34bit Housing: waterproof encapsulated IP65 LED and beep can be switched off Power supply: 12V DC, 50mA Dimensions: 170 x 83 x 26mm Download instruction manual: sKey2 instruction manual.pdf

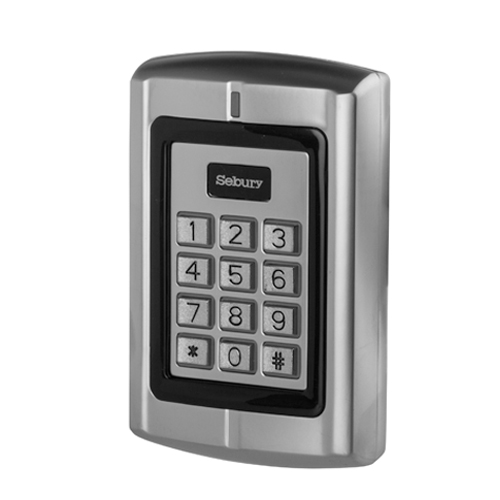

RFID and code / waterproof / 2,000 people Access control system with integrated RFID reader antenna for contactless transponder Solid steel housing, vandal and tamper-proof Waterproof IP68 sealed 2,000 memory places (people)Transponder only or Code only or Transponder + Code Individual transponders also erased if lost Controller and integrated active antenna · - Use as a standalone device (default)· - Use as a pure controller (also for antennas (LEGIC, ISO14443, Hitag, etc.)· - Use antenna as possible Wiegand26 External door opener button can be connectedTamper switch in the housingConnection for door contactFor doors, gates, garages, shutters, etc.Potential free relay output 00-99 seconds adjustable (change)Switching time of the alarm output (sabotage) 0-3 minutes adjustableFail-safe EEPROM memory powerNo PC connectionblue backlit keypadIntegrated LEDs and beeper Reading distance: up to 6cmDimensions: 128x82x28mm Weight: ca.700gPower supply: 12V-24V DC or AC voltageCurrent consumption: approx 40mA Transponder type: Universal 125kHz (EM4102 or compatible) including interface: Wiegand 26 bit in / outincluding 2 programming cards for fast learning of transpondersInstallation and operating instructions Manual  Optional AccessoriesTags, Cards, FobsReader (W1-C is indoor mounted)Controller (W1-C is outdoor mounted as Reader)Power SuppliesLocker & Strikes

Four Door ControllerIndependent media,Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.1 relay output for door opener, barrier system, etc.Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.The cable length to  the external readers can be up to 100m.Use as a powerful door controllers with Windows software or as a simple system with basic functions managede via web browserTransponder can be taught in four ways into the system:- Teaching at the door reader- Teach using a USB reader RD105-US 8D WEG26- Manual input on the PC keyboard (if the Wiegand number is known)- Block storage of assorted transponders (eg 1000 pcs in a minute)Memory for up to 20,000 peopleEvent memory up to 100,000 eventsBoard dimensions: 160x106mmincluding LAN interface RJ45including 2 x Wiegand 26 Interfaceincluding extensive English-language Windows software (free)or as a German-language Windows software (free of charge)Attention!The new SC3000 controllers are not compatible with the old SC9000 controllersAccessories Installation cable by meter Periphery Output board Casing without power supplyor Case with power supply WIFI adapter Compatible RFID / PIN Code readerDoor Opener Door Contact

Housing with improved, modern and energy-efficient 12V switching power supply unitfor door controllers SC3001NT, SC3002NT, SC3004NT, SC901NT, SC902NT, SC904NTsheet steel housing 28x23,5x7cm, with lockable doorwith integrated switching power supply 100-250V - 12V DC voltageMax. simultaneous withdrawal 5AStabilized, overvoltage-proof, electronic overload and short-circuit protection

Active RFID reader antenna for contactless EM transponder Tamper-proof mounted, the controller is in the security area Sabotage attempts on the antenna are ineffective Integrated LEDs and beeper Waterproof cast, suitable for outdoor applications Dimensions: 115x75x15mm Power supply: 12V DC Current consumption: approx 45mA Interface: Wiegand 26 2 wires for data transfer (send and receive) The cable length to the controller can be up to 100m. Reading distance: up to 10cm RFID Chip type: 125 kHz, EM4102, EM4100, EM4200, Unique or compatible (UID) Optional accessories:Installation cableTCP-IP controllerorCompact controllerCompatible Tags, Cards, Key Fobs, Label

Glass touch keypad  and dual frequency RFID access control for EM4102 / 4100/4200 and ISO14443 compatible transponders  Full metal housing with concentrated double reading field through the LED bar and solid PIN code keypad  The use of plastic on the housing could almost be dispensed with.  Potted waterproof, suitable for outdoor areas  Multifunction with PIN code and RFID multi-protocol reader  Standalone function with relay output  Reading function connected to Wiegand connection for evaluation units such as Sboard access controllers and SC3000NT. The relay switching then takes place inside, so attempts at sabotage on the wall reader are ineffective. Technical details: PIN code and RFID reader full metal housing Glass keypad Color: cappuccino black Operating mode: standalone or reader (Wiegand) Dual frequency 125 khz and 13.56 Mhz RFID chip types 125KHz: HID prox, EM4200, EM4102 UID RFID chip types 13.56MHz: ISO 14443 Output format: Wiegand 26 / 34bit Housing: waterproof encapsulated IP65 LED and beep can be switched off Power supply: 12V DC, 50mA Dimensions: 160 x 45 x 26mm Download instruction manual: sKey2 instruction manual.pdf

12V Signalgeber für Gleichspannungkann z.B. parallel zu einem Gleichspannungs-Türöffnerverwendet werden um akustisch die Türöffnung anzuzeigen.zu hören ist. Maße: D10x10mmFrequenz: 2600 Hzmit Anschlussleitung 15cm

Single Door ControllerIndependent media,Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.1 relay output for door opener, barrier system, etc.Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.The cable length to  the external readers can be up to 100m.Transponder can be taught in four ways into the system:- Teaching at the door reader- Teach using a USB reader RD105-US 8D WEG26- Manual input on the PC keyboard (if the Wiegand number is known)- Block storage of assorted transponders (eg 1000 pcs in a minute)Memory for up to 20,000 peopleEvent memory up to 100,000 eventsBoard dimensions: 160x106mmincluding LAN interface RJ45including 2 x Wiegand 26 Interfaceincluding extensive English-language Windows software (free)Attention!The new SC3000 controllers are not compatible with the former SC9000 controllers Wiring German Manual English Software German manual for the German software Accessories Installation cable by meter Periphery Output board Casing without power supplyor Case with power supply WIFI adapter Compatible RFID / PIN Code readerDoor Opener Door Contact

German-language software for the IK-POINT door controller SC3001NT, SC3002NT, SC3004NTfor all current versions of Windows Win10, Win11Extensive facilities for unlimited attachment sizes.Delivery on CD incl. USB key against unauthorized use.Operating instructions as PDF

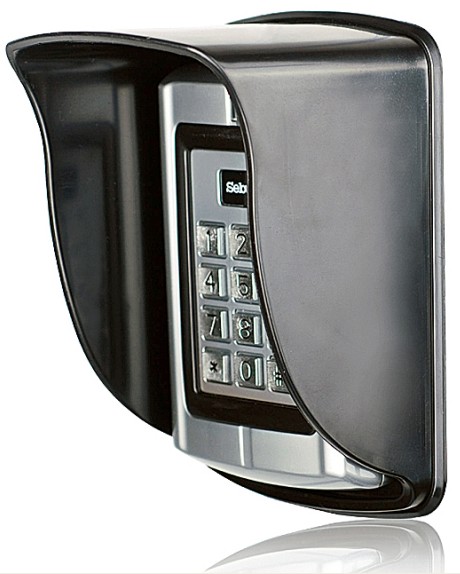

Protective Case Rain cover / Screen Closed on all sides, including rubber seal for rough surfaceswith 2 cable bushings, Holes must be drilled individually Material: Plastic Color: Black Dimensions HxWxD: 150x104x90mm

Ruggedized PIN code and dual frequency RFID access control for EM4102 / 4100/4200 and ISO14443 compatible transponders  Full metal housing with concentrated double reading field through the LED bar and solid PIN code keypad  The use of plastic on the housing could almost be dispensed with.  Potted waterproof, suitable for outdoor areas  Multifunction with PIN code and RFID multi-protocol reader  Standalone function with relay output  Reading function connected to Wiegand connection for evaluation units such as Sboard access controllers and SC3000NT. The relay switching then takes place inside, so attempts at sabotage on the wall reader are ineffective. Technical details: PIN code and RFID reader full metal Color: cappuccino black Operating mode: standalone or reader (Wiegand) Dual frequency 125 khz and 13.56 Mhz RFID chip types 125KHz: HID prox, EM4200, EM4102 UID RFID chip types 13.56MHz: ISO 14443 Output format: Wiegand 26 / 34bit Housing: waterproof encapsulated IP65 LED and beep can be switched off Power supply: 12V DC, 50mA Dimensions: 170 x 83 x 26mm Download instruction manual: sKey2 instruction manual.pdf

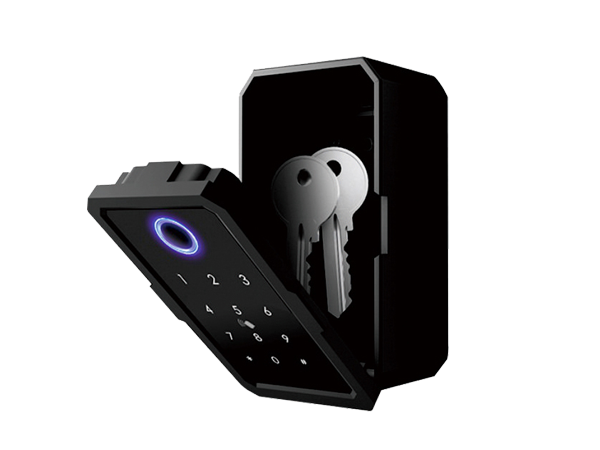

High-quality key safe with various access options The weatherproof metal D3 key safe can be opened with a fingerprint, PIN code, smartphone app or RFID transponder. It can be fixed to the wall next to the door or hung up on the doorknob or railing or similar using steel brackets. A so-called 5-minute code can be assigned remotely, for example to give holiday guests access to the keys to the holiday apartment or holiday home. You generate a unique 9-digit PIN code via the smartphone app, which you can then announce to your holiday guests by phone or send it by SMS, Whatsapp or email. This code is deleted again after 5 minutes and is then ineffective. Technical characteristics: - Zinc alloy weatherproof housing- Supports RFID transponder 13.56MHz ISO14443A- Capacitive fingerprint sensor with low power consumption- Configuration via smartphone app Tuya- Door opening with fingerprint or transponder or PIN code or via Bluetooth - Power failure safe EEPROM memory - Backlit sensor field with button tones (can be switched off)- English voice announcement integrated (can be switched off) Specification:Material: zinc alloyBattery operation: 4x1.5V AAA (not included)Emergency power supply via USBStorage space for transponders/PIN codes: 150 usersStorage space fingerprints: 100 usersWorking temperature: -25°C to 55°CDimensions: 122x72x52mm Download: German assembly and operating instructions as PDF

Two Door ControllerIndependent media,Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.1 relay output for door opener, barrier system, etc.Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.The cable length to  the external readers can be up to 100m.Use as a powerful door controllers with Windows software or as a simple system with basic functions managede via web browserTransponder can be taught in four ways into the system:- Teaching at the door reader- Teach using a USB reader RD105-US 8D WEG26- Manual input on the PC keyboard (if the Wiegand number is known)- Block storage of assorted transponders (eg 1000 pcs in a minute)Memory for up to 20,000 peopleEvent memory up to 100,000 eventsBoard dimensions: 160x106mmincluding LAN interface RJ45including 2 x Wiegand 26 Interfaceincluding extensive English-language Windows software (free)Attention!The new SC3000 controllers are not compatible with the old SC9000 controllersAccessories Installation cable by meter Periphery Output board Casing without power supplyor Case with power supply WIFI adapter Compatible RFID / PIN Code readerDoor Opener Door Contact

Ready for installation in wooden panels, tiles, also metal, 20mm hole required Tamper-proof (Controllers are mounted in the safe area) Tamper tests on the antenna are ineffective LED integrated Standby = red LED on Detection transponder = LED Red blinking LED switch off when wire (yellow) is disconnected Waterproof, suitable for outdoor applications Dimensions Cap: d26x3mm Dimensions thread Hole: d20 Power supply: 12v DC voltage Current consumption: approx. 30ma Temperature range:-30 °c to 60 °c Protection class: IP68 Cable Length: 15cm Reading speed: approx. 0.1 seconds Interface: Wiegand 34 bit 2 Cores for data transmission The line length up to the controller can be up to 100m. Reading distance: up to 2cm RFID type: 13.56 MHz, ISO14443 Optional accessories:Installation cableTCP-IP controllerorCompact controllerCompatible Tags, Cards, Key Fobs, Label

Active RFID reader antenna for contactless EM transponder Tamper-proof mounted, the controller is in the security area Sabotage attempts on the antenna are ineffective Integrated LEDs and beeper Waterproof cast, suitable for outdoor applications Dimensions: 115x75x15mm Power supply: 12V DC Current consumption: approx 45mA Interface: Wiegand 26 2 wires for data transfer (send and receive) The cable length to the controller can be up to 100m. Reading distance: up to 10cmRFID type: 125 kHz, EM4102, EM4100, EM4200, Unique or compatible (UID) Installation and operating instructions Installation cableTCP-IP controllerorCompact controllerCompatible Tags, Cards, Key Fobs, Label

RFID Zutrittssystem / wasserdicht IP65 / Farbe: schwarzZutrittskontrollsystem mit integrierter RFID Leseantenne für berührungslose Transponder 2000 Speicherplätze für Transponder (Personen) Einzelne Transponder auch bei  Verlust löschbar Standalone Gerät Externer Türöffnertaster anschließbar Sabotagekontakt im Gehäuse (lichtempfindlicher Sensor) Für Türen, Schranken, Tiefgaragen, Rollläden, etc potentialfreier Relaisausgang von 00 – 99 Sekunden einstellbar (Wechsler) oder als Dauerkontakt (AN-AUS-AN) für Schaltvorgänge, EMA, o.ä. die LED leuchtet dauerhaft grün solange der Dauerkontakt AN ist und rot wenn er AUS ist Stromausfallsicherer EEPROM Speicher Kein PC-Anschluß LED Leiste und Buzzer integriert Betriebs-LED abschaltbar Buzzer abschaltbar Leseabstand: bis zu 10cm Maße: 102x48x20mm Gewicht: 170g Einsatztemperatur: -40°C bis 60°C Stromversorgung: 12V Gleichspannung (9-18V) Stromaufnahme: ca. <40mA Belastung Relaiskontakt 2A Lesbarer Transpondertyp: ISO14443, kompatibel zu MIFARE® Classic 1k UID (4byte) inkl. zwei Masterkarten für schnelles Einlernen bzw. Löschen inkl. Infrarot Programmiergerät für alle Änderungen, Einstellungen (Passwortschutz 6 stellig) Englische Montage- und Bedienungsanleitung Deutsche Montage- und Bedienungsanleitung als PDF PDF Anleitung Optionales Zubehör Installationsleitung Meterware Transponder Netzteile Türöffner

Transponder Codeschloss mit RFIDRFID und Code / 1000 Personen Lesegerät mit integrierter RFID Leseantenne für berührungslose Transpondermassives Stahlgehäuse, mattiert, Vandalen- und Sabotagegeschützt1000 Speicherplätze (Personen)Nur Transponder, nur Code oder Transponder + CodeCode jetzt auch ohne Transponder anzulegenEinzelne Transponder auch bei  Verlust löschbarExterner Türöffnertaster anschließbarSabotagekontakt im GehäuseAnschluß für TürkontaktFür Türen, Schranken, Tiefgaragen, Rollläden, etcÖffnungsrelais von 1 – 99 Sekunden einstellbaroder Dauerschaltung für Licht- oder SchaltfunktionenSchaltzeit des Alarmausgangs (Sabotage) von 1 - 3 Minuten einstellbarStromausfallsicherer EEPROM SpeicherKein PC-Anschlußblau hinterleuchtetes TastenfeldLEDs und Beeper intergriertLeseabstand: bis 6cmTemperaturbereich: -40°C bis 60°CMaße:128x82x28mmGewicht: ca.500gStromversorgung: 12V Gleichspannung (8-14V)Stromaufnahme: ca. 20mABelastung Relais: max 3000mATranspondertyp: Universal 125kHz (EM4102 oder kompatibel) Deutsche Montage- und Bedienungsanleitung  Anleitung   Optionales Zubehör Installationsleitung Meterware Wetterschutzdach Transponder Netzteile Türöffner Magnetkontakt

For installation in cases, boxes (wall outlets) stabilized output voltage Input: 100 - 240VAC Output: 12VDC 1000mA at below 30 ° C. 700mA to 40 ° C encapsulated IP64 D55x25mm

Sebury touch wideStand alone access systemCan be used as a complete device with integrated memory and relay outputoras a tamper-proof variant as a pure reader in connection with a door controller- Elegant and robust aluminum housing- Waterproof IP65- Illuminated touch keyboard and RFID reader for contactless transponders- 2000 memory locations for keyboard codes and transponders- Adjustable: code or transponder / code and transponder / only transponder- additional data output for professional applications: Wiegand 26-37 bit- Sabotage contact in the housing- Integrated LEDs and beeper- Acoustic alarm in the event of sabotage- alarm output- integrated changeover relay- Switching as a pulse 1-99 seconds- or as permanent ON-OFF-ON-OFF for switching functions- Bell button led out directly (internal resistance approx. 80 Ohm) only for electronic gong (max. 100mA)  or via doorbell decoder- Multi-user function, 2-10 people must identify themselves before the door is opened.- Switching as a single system or as an anti-pass-back with two readers for one door- Reading distance transponder: up to 3-10cm- Dimensions sTouch-w: 125x83x22mm- Power supply: 12V-24V DC voltage- Current: 35mA- Temperature range: -40 ° C to 60 ° C- Operating display: multifunction display (can be switched off)- Keyboard lighting: white (can be switched off or automatic when approaching)- Key tones (can be switched off)Readable transponder types:125 kHz (HID-Prox, EM4100, EM4102, EM4200 or compatible) Unique / Universal Scope of delivery:- External unit / Access Host sTouch Standalone wide- Manager cards (learning and deletion cards)- Small and fastening material- Instructions (English) print- Instructions (German) as PDFEnglish manualOperating instructions German Optional accessoriesInstallation cable by the meterTransponder EM or HIDPower supplyDoor openerControllerElectronic doorbell

System open door controllerAccess control system for Wiegand-capable access readersoras an evaluation unit as an IAS arming/disarming switch  500 storage spaces for transponders or PIN codes  Management via WLAN and smartphone app (IOS and Android)  External door opener button can be connected Door contact (door open or door closed) can be connected  LED output for display on the reader  Output adjustable via jumper Voltage is switched through directly (factory setting) or potential-free relay contact changeover Pulse 1-99 seconds or dynamic ON-OFF-ON-OFF ... Power failure-safe EEPROM memory  Wiegand input 26-37bit e.g. for RFID readers EM4102, HITAG, ISO14443, LEGIC, UHF, etc. with or without PIN code keyboard, magnetic card reader, fingerprint readers, biometric face recognition     Dimensions: 91x48x20mm    Weight: 63g    Operating temperature: -20°C to 60°C    Power supply: 12V DC    Current consumption: approx. <20mA    Load outputs: max 2A    English user manual    German operating instructions as PDF downloadPower display: LED redLED and signal tones can be switched off AccesoriesInstallation cable sold by the meterMatching readers with EM technologyMatching readers with ISO14443Matching readers othersPower suppliesDoor opener

Electric strike DIN right / left Mortise door lock with a flat plate (short) for 12V DC DC Function of load current Current consumption approx 700 mA tested up to 600kg including a small door plate including mechanical Switch for continuous door opening (interlocksystem) including memory function (door can be opened by current pulse x 1) including horizontally adjustable latch Suitable for all standard doors
