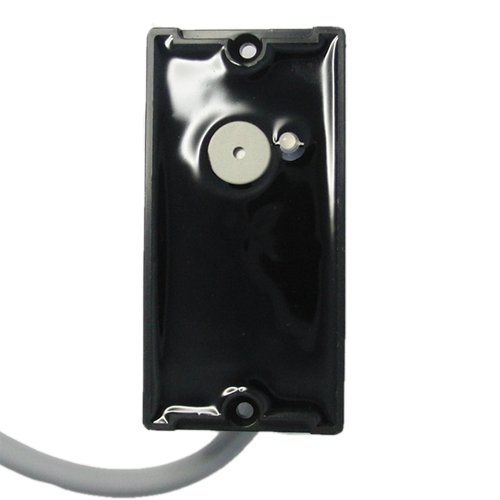

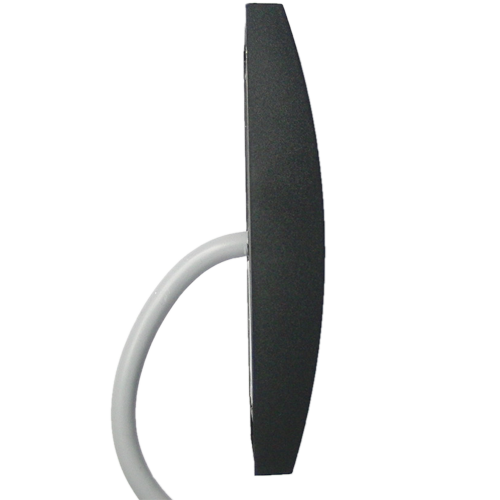

LR-Mini-sw EM4102
Product number:
LR-Mini-EM
Product information "LR-Mini-sw EM4102"
Active RFID reader antenna for universal contactless ISO14443 tags, cards, label, fobs
Tamper-proof because the transmitter is mounted in the security area is
Sabotage attempts on the antenna are ineffective
Intergrated LED and beeper
Water resistant, suitable for outdoor applications
Dimensions: 100x42x16mm
Housing Color: Black
Power supply: 12V DC

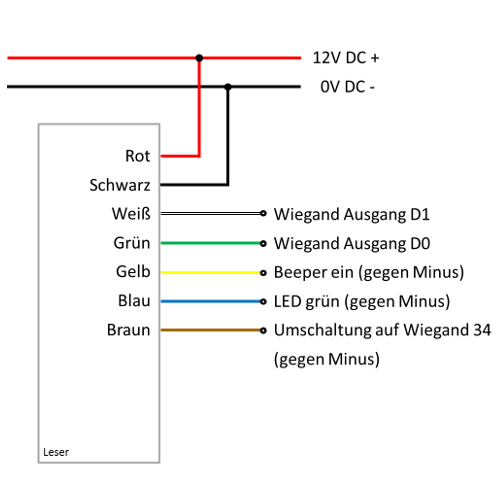

2 wires for data transfer (send and receive)
The cable length to the controller can be up to 100m.
Transponder read distance: up to 8cm
Transponder type: EM4102, 125 kHz
Tamper-proof because the transmitter is mounted in the security area is
Sabotage attempts on the antenna are ineffective
Intergrated LED and beeper
Water resistant, suitable for outdoor applications
Dimensions: 100x42x16mm
Housing Color: Black
Power supply: 12V DC
2 wires for data transfer (send and receive)
The cable length to the controller can be up to 100m.
Transponder read distance: up to 8cm
Transponder type: EM4102, 125 kHz
Optional Accessories:
Installation cable
TCP-IP controller
or
Compact controller
Compatible Tags, Cards, Key Fobs, Label
| Protokoll, Bauform, Relais, : | Wasserdicht, Wiegand 26, Wiegand 34 |
|---|---|
| RFID Lesbarer Chiptyp: | 125 kHz, EM4102 |
