R4-EM
Product information "R4-EM"
Active RFID reader antenna for contactless EM Tags
Sabotage-Safe full metal case
Tamper-proof mounted since the transmitter / controller in the security area
Sabotage attempts on the antenna are ineffective
Integrated LEDs and beeper
Waterproof cast, suitable for outdoor applications
Dimensions: 135x58x26mm
Power supply: 12V DC
Current consumption: approx 65mA
Temperature range: -20 ° C to 60 ° C.
Protection class: IP68
Read speed: 0.1 second

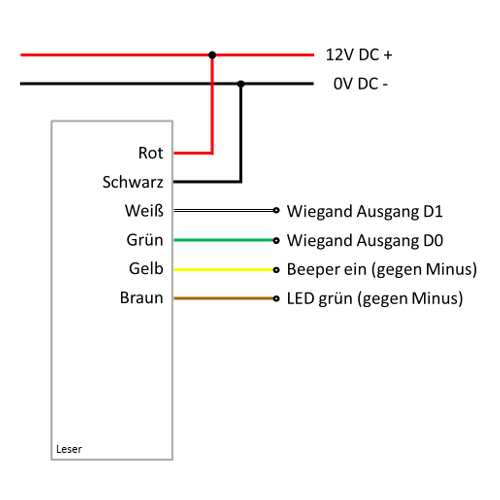

Interface: Wiegand 26
2 wires for data transfer (send and receive)
The cable length to the controller can be up to 100m.
Reading distance: up to 6cm
RFID Chip typ: 125 kHz, EM4102, EM4100, EM4200, Unique or compatible (UID)
Sabotage-Safe full metal case
Tamper-proof mounted since the transmitter / controller in the security area
Sabotage attempts on the antenna are ineffective
Integrated LEDs and beeper
Waterproof cast, suitable for outdoor applications
Dimensions: 135x58x26mm
Power supply: 12V DC
Current consumption: approx 65mA
Temperature range: -20 ° C to 60 ° C.
Protection class: IP68
Read speed: 0.1 second
Interface: Wiegand 26
2 wires for data transfer (send and receive)
The cable length to the controller can be up to 100m.
Reading distance: up to 6cm
RFID Chip typ: 125 kHz, EM4102, EM4100, EM4200, Unique or compatible (UID)
Optional accessories:
Installation cable
TCP-IP controller
or
Compact controller
Compatible Tags, Cards, Key Fobs, Label
Installation cable
TCP-IP controller
or
Compact controller
Compatible Tags, Cards, Key Fobs, Label
| Protokoll, Bauform, Relais, : | Wasserdicht, Wiegand 26 |
|---|---|
| RFID Lesbarer Chiptyp: | 125 kHz, EM4102 |
