SC3004NT

€199.00*

Total Price incl. Accessories €199.00*

Prices excl. VAT plus shipping costs

3 Reviews

Available, delivery time: 1-3 days

Product number: SC3004NT

Product information "SC3004NT"

Four Door Controller
Independent media,
Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.
1 relay output for door opener, barrier system, etc.
Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.
Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.
The cable length to  the external readers can be up to 100m.

Use as a powerful door controllers with Windows software or as a simple system with basic functions managede via web browser

Transponder can be taught in four ways into the system:
- Teaching at the door reader
- Teach using a USB reader RD105-US 8D WEG26
- Manual input on the PC keyboard (if the Wiegand number is known)
- Block storage of assorted transponders (eg 1000 pcs in a minute)
Memory for up to 20,000 people
Event memory up to 100,000 events
Board dimensions: 160x106mm

including LAN interface RJ45
including 2 x Wiegand 26 Interface
including extensive English-language Windows software (free)
or as a German-language Windows software (free of charge)

Attention!
The new SC3000 controllers are not compatible with the old SC9000 controllers


Accessories
Installation cable by meter

Periphery Output board

Casing without power supply
or

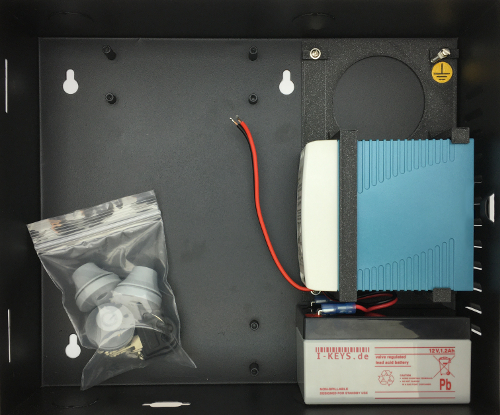

Case with power supply

WIFI adapter

Compatible RFID / PIN Code reader

Door Opener

Door Contact

3 of 3 reviews

100%

0%

0%

0%

0%

Leave a review!

Share your experiences with other customers.

6 October 2022 13:59

Ausgezeichnetes Produkt und Service

Ich habe mir diesen Controller für unser Ferienhaus gekauft. Er erfüllt seinen Dienst zusammen mit der Software sehr gut. Das Service und die Unterstützung durch die Mitarbeiter ist ausgezeichnet!! ? Nur weiterzuempfehlen!!!

Our feedback: Vielen Dank für die sehr gute Bewertung.

21 January 2023 12:49

Perfekt für unseren Firmenzugang!

Controller inkl. sTouch2 und Software für unseren Firmenzugang gekauft. Läuft sehr gut und wir sind sehr zufrieden. Vielen Dank!

Our feedback: Vielen Dank für Ihre Bewertung. I-KEYS wünscht Ihnen viel Erfolg.

8 March 2023 22:05

Top Geräte

Wir benutzen Geräte von I-Keys schon über 8 Jahren, bis heute funktioniert alles ohne einzige Ausfall oder Defekt. TOP

Our feedback: Vielen Dank für Ihre Bewertung.
SC3001NT
SC3001NT
Single Door ControllerIndependent media,Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.1 relay output for door opener, barrier system, etc.Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.The cable length to  the external readers can be up to 100m.Transponder can be taught in four ways into the system:- Teaching at the door reader- Teach using a USB reader RD105-US 8D WEG26- Manual input on the PC keyboard (if the Wiegand number is known)- Block storage of assorted transponders (eg 1000 pcs in a minute)Memory for up to 20,000 peopleEvent memory up to 100,000 eventsBoard dimensions: 160x106mmincluding LAN interface RJ45including 2 x Wiegand 26 Interfaceincluding extensive English-language Windows software (free)Attention!The new SC3000 controllers are not compatible with the former SC9000 controllers Wiring German Manual English Software German manual for the German software Accessories Installation cable by meter Periphery Output board Casing without power supplyor Case with power supply WIFI adapter Compatible RFID / PIN Code readerDoor Opener Door Contact

€159.00*
Details
SC3002NT
SC3002NT
Two Door ControllerIndependent media,Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.1 relay output for door opener, barrier system, etc.Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.The cable length to  the external readers can be up to 100m.Use as a powerful door controllers with Windows software or as a simple system with basic functions managede via web browserTransponder can be taught in four ways into the system:- Teaching at the door reader- Teach using a USB reader RD105-US 8D WEG26- Manual input on the PC keyboard (if the Wiegand number is known)- Block storage of assorted transponders (eg 1000 pcs in a minute)Memory for up to 20,000 peopleEvent memory up to 100,000 eventsBoard dimensions: 160x106mmincluding LAN interface RJ45including 2 x Wiegand 26 Interfaceincluding extensive English-language Windows software (free)Attention!The new SC3000 controllers are not compatible with the old SC9000 controllersAccessories Installation cable by meter Periphery Output board Casing without power supplyor Case with power supply WIFI adapter Compatible RFID / PIN Code readerDoor Opener Door Contact

€169.00*
Details
Sboard-III Wifi
Sboard-III Wifi
System open door controllerAccess control system for Wiegand-capable access readersoras an evaluation unit as an IAS arming/disarming switch  500 storage spaces for transponders or PIN codes  Management via WLAN and smartphone app (IOS and Android)  External door opener button can be connected Door contact (door open or door closed) can be connected  LED output for display on the reader  Output adjustable via jumper Voltage is switched through directly (factory setting) or potential-free relay contact changeover Pulse 1-99 seconds or dynamic ON-OFF-ON-OFF ... Power failure-safe EEPROM memory  Wiegand input 26-37bit e.g. for RFID readers EM4102, HITAG, ISO14443, LEGIC, UHF, etc. with or without PIN code keyboard, magnetic card reader, fingerprint readers, biometric face recognition     Dimensions: 91x48x20mm    Weight: 63g    Operating temperature: -20°C to 60°C    Power supply: 12V DC    Current consumption: approx. <20mA    Load outputs: max 2A    English user manual    German operating instructions as PDF downloadPower display: LED redLED and signal tones can be switched off AccesoriesInstallation cable sold by the meterMatching readers with EM technologyMatching readers with ISO14443Matching readers othersPower suppliesDoor opener

€79.00*
Details
Sboard ISO14443
Sboard ISO14443
Open door access controllerAccess control system for Wiegandable access readersorcontrol unit as EMA arming/disarming device1000 memory locations for transponders or PIN codesAccess with RFID only, PIN only or RFID + PINSingle RFID tags and PINs can be deleteted separatlyExternal door release button can be connectedLED output for display on the readerOutput adjustable via jumperVoltage is switched directly through (factory setting) or floating relay contact Change-over contactPulse 1-99 seconds or Dynamic ON-OFF-OFF-OFF....Power-fail-safe EEPROM memoryBlock storage with sorted transponders Enter the first UID number and quantity, ready (e. g. 1000 pcs. in approx. 2 minutes)No PC connection neededCopy the entire memory contents into one or more sBoards as a "backup copy" or as a fast creation for several doorsWiegand input 26-37bit e. g. for RFID readers EM4102, HITAG, ISO14443, LEGIC, UHF, etc. with or without PIN-code keypad, magnetic card reader, fingerprint reader, biometric face recognition.When using ISO14443 wall scanners, please always order the ISO14443 programming card set as well, or alternatively use the supplied remote controlDimensions: 65x54x19mmWeight: 40gOperating temperature: -40°C to 60°CPower supply: 12V DC voltageOutput load: max. 2Aincl. infrared programming device for all changes, settings (password protection 6-digit)incl. programming cards Set for your selected ISO14443 wall readerEnglish instruction manualGerman manual as PDF filePower indicator: LED redLED and signal tones can be switched off Wiring samplesHow do I open the case?Operating instructions (german)Manual (english)AccessoriesProgramming Card Set for ISO14443 ReaderInstallation cableSuitable readers with EM 4102 technologySuitable readers with ISO14443 technologySuitable readers OtherPower suppliesDoor opener

€25.50*
Details
S2-MI-s-FW2
S2-MI-s-FW2
RFID Zutrittssystem / wasserdicht IP65 / Farbe: schwarzZutrittskontrollsystem mit integrierter RFID Leseantenne für berührungslose Transponder 2000 Speicherplätze für Transponder (Personen) Einzelne Transponder auch bei  Verlust löschbar Standalone Gerät Externer Türöffnertaster anschließbar Sabotagekontakt im Gehäuse (lichtempfindlicher Sensor) Für Türen, Schranken, Tiefgaragen, Rollläden, etc potentialfreier Relaisausgang von 00 – 99 Sekunden einstellbar (Wechsler) oder als Dauerkontakt (AN-AUS-AN) für Schaltvorgänge, EMA, o.ä. die LED leuchtet dauerhaft grün solange der Dauerkontakt AN ist und rot wenn er AUS ist Stromausfallsicherer EEPROM Speicher Kein PC-Anschluß LED Leiste und Buzzer integriert Betriebs-LED abschaltbar Buzzer abschaltbar Leseabstand: bis zu 10cm Maße: 102x48x20mm Gewicht: 170g Einsatztemperatur: -40°C bis 60°C Stromversorgung: 12V Gleichspannung (9-18V) Stromaufnahme: ca. <40mA Belastung Relaiskontakt 2A Lesbarer Transpondertyp: ISO14443, kompatibel zu MIFARE® Classic 1k UID (4byte) inkl. zwei Masterkarten für schnelles Einlernen bzw. Löschen inkl. Infrarot Programmiergerät für alle Änderungen, Einstellungen (Passwortschutz 6 stellig) Englische Montage- und Bedienungsanleitung Deutsche Montage- und Bedienungsanleitung als PDF PDF Anleitung Optionales Zubehör Installationsleitung Meterware Transponder Netzteile Türöffner

€48.90*
Details
Codeschloss mit Touch PIN Eingabe und RFID
sTouch2 | glass keypad PIN code and dual frequency RFID access control
Glass touch keypad  and dual frequency RFID access control for EM4102 / 4100/4200 and ISO14443 compatible transponders  Full metal housing with concentrated double reading field through the LED bar and solid PIN code keypad  The use of plastic on the housing could almost be dispensed with.  Potted waterproof, suitable for outdoor areas  Multifunction with PIN code and RFID multi-protocol reader  Standalone function with relay output  Reading function connected to Wiegand connection for evaluation units such as Sboard access controllers and SC3000NT. The relay switching then takes place inside, so attempts at sabotage on the wall reader are ineffective. Technical details: PIN code and RFID reader full metal housing Glass keypad Color: cappuccino black Operating mode: standalone or reader (Wiegand) Dual frequency 125 khz and 13.56 Mhz RFID chip types 125KHz: HID prox, EM4200, EM4102 UID RFID chip types 13.56MHz: ISO 14443 Output format: Wiegand 26 / 34bit Housing: waterproof encapsulated IP65 LED and beep can be switched off Power supply: 12V DC, 50mA Dimensions: 170 x 83 x 26mm Download instruction manual: sKey2 instruction manual.pdf

€89.00*
Details
