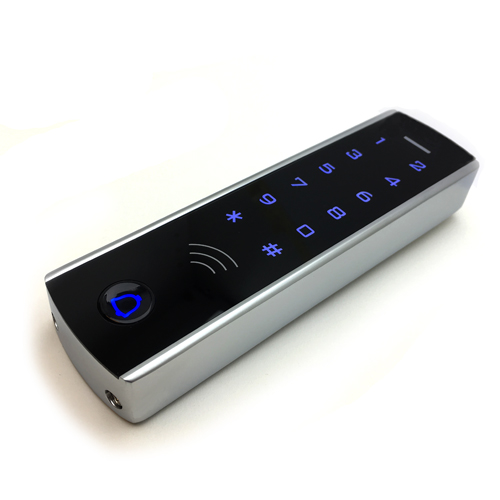

T4-EM
€39.90*
Available, delivery time: 1-3 days
Total:
*
Product number:
T4-EM
Product information "T4-EM"
RFID and code / 2000 persons
Access control system with integrated RFID reading antenna for contactless transponders
solid steel housing, protected against vandalism and sabotage
Weatherproof seal
- 2000 memory locations (persons)
- Only transponder, only code or transponder + code
- Individual transponders can be deleted even if lost
- Integrated controller and active antenna
- Use as stand-alone device (standard)
- Use as Wiegand26 antenna possible
- External door release button can be connected
- Sabotage contact in the housing
- Connection for door contact
- For doors, barriers, underground garages, roller shutters, etc.
- Potential-free relay output adjustable from 00 - 99 seconds (change-over contact)
- Alarm output switching time (sabotage) adjustable from 0 - 3 minutes
- Power fail-safe EEPROM memory
- No PC connection
- Bell button for up to 100mA
- Blue backlit keypad
- Integrated LEDs and beeper
- Read distance: up to 6cm
- Dimensions:154x43x20mm
- Weight: approx.500g
- Power supply: 12V DC
- Power consumption: approx. 30mA
- Transponder type: 13.56 Mhz ISO14443 ® 1k, 4k, 4byte UID
- incl. interface: Wiegand 26 bit out
- German installation and operating instructions
Optional Accessories
Reader (W1-C is indoor mounted)
Controller (W1-C is outdoor mounted as Reader)
