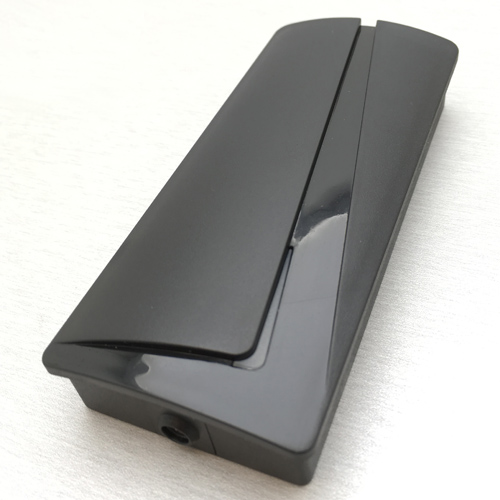

A55M

Mifare Desfire Wandleser für Türsteuerung

€29.90*

Total Price incl. Accessories €29.90*

Prices excl. VAT plus shipping costs

Available, delivery time: 1-3 days

Access Control mReader Multi RFID Reader

€79.00*

Access Control mReader Multi RFID Reader

€79.00*

Product number: A55M-B

Product information "A55M"

Active RFID reading antenna for contactless ISO14443 tags
Tamper-proof because the evaluation electronics / controller is mounted in the fuse area
Attempts to sabotage the antenna have no effect
Integrated LEDs and beeper
Waterproof encapsulated, suitable for outdoor applications
Dimensions:110x48x20mm
Colour: black
Power supply: 12V DC
Power consumption: approx. 45mA
Reading distance: up to 5cm

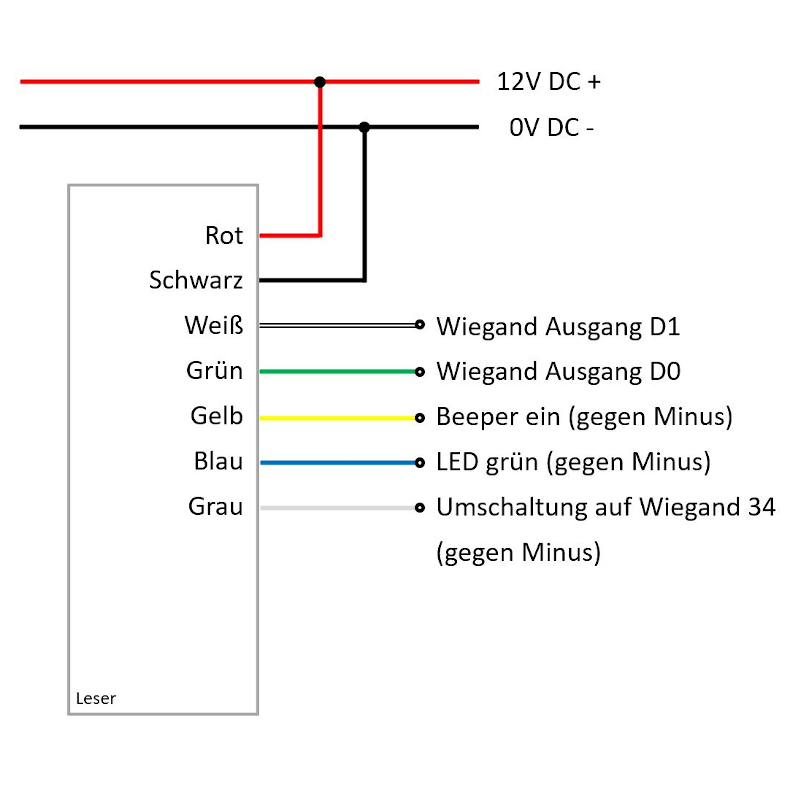

Interface: Wiegand 34bit
Compatible Transponder types: 13.56 Mhz, ISO14443 1k or 4k (4byte and 7byte),

Status display: Red LED on

RFID recognition: green LED on, beeper on

Compatible USB readers for access control (Wiegand 34):

Protokoll, Bauform, Relais, :	Wasserdicht, Wiegand 34
RFID Lesbarer Chiptyp:	13,56 MHz, Desfire®, Mifare® Classic

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

Tip

Access Control mReader Multi RFID Reader

Access Control Multi RFID Reader RFID wall mountable reader for EM4102 and 13,56MHz Full metal housing with concentrated double reading field through the LED barInternational award-winning designPotted waterproof, suitable for outdoor areas TheRFID card reader will beconnected to access controller like sBoaard and SC3000NT via the Wiegand interface.The relay switching takes placein doors,sabotage attempts on the wall readers are therefore ineffective. Material: full metal, finished, Color: cappuccino black Dimensions: 103x48x22 mm Temperature range: -20 ° C to 50 ° C Protection class: IP65 Multiprotocol RFID: 125kHz: EM4102, EM4100, EM4200 Compatible RFID Chip types:13.56 MHz: compatible to Mifare® Classic 1k and 4k, 4byte and 7byte UID ISO14443A Compatible RFID Chip types: 13.56 MHz: compatible to DESFire® EV1 and EV2 and EV3 , compatible to Ultralight®, NTAG and compatible 7byte UID Power supply: 12V DC, <35mA Operating display: LED bar red Green LED bar and beeper can be controlled Tampering alarm function The cable length to the controller can be up to 100m. Wiegand output: 34 bit for all protocols

€79.00*
