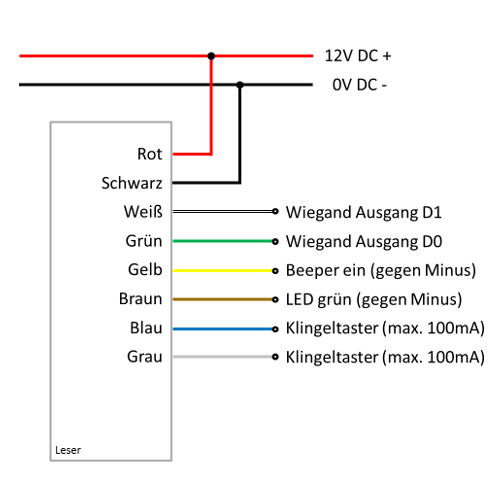

Anschlussplan Codeschloss mit RFID Auswertung

€74.50*

Total Price incl. Accessories €74.50*

Prices excl. VAT plus shipping costs

No longer available

K709-A-Uni-Black

€1.69 - €2.99*

K709-A-Uni-Black

€1.69 - €2.99*

SVB600 Electrical Door Lock

€99.90*

SVB600 Electrical Door Lock

€99.90*

SC3004NT

€199.00*

SC3004NT

€199.00*

K715-sw-Uni

€1.69 - €2.99*

K715-sw-Uni

€1.69 - €2.99*

K694 Uni WEG26

€1.69 - €2.99*

K694 Uni WEG26

€1.69 - €2.99*

RC-1001

€12.80*

RC-1001

€12.80*

Product number: sKey-Leser-R-w

Product information "sKey Reader R-W"

Sebury sKey wide keyboard

Tamper -proof outdoor unit without saving
- Elegant and robust aluminum housing
- Waterproof IP65
- Illuminated Metal Keypad and RFID reader for contactless transponder
- Data connection to a controller
- Delivery without door controller
- Data output: Wiegand 26-37 bits
- Tamper switch in the housing
- Intergrated LED and beeper
- Audible alarm if tampering
- Bell button directly led out ( internal resistance of about 80 ohms) for electronic Gong ( max. 10mA )
or Doorbell decoder
- Transponder reading distance : up to 3 -10cm
- Dimensions sKey R w: 125x83x22mm
- Power supply: 12V DC
- Current: 35mA
- Temperature range : -40 ° C to 60 ° C
- Status display : multi-function display (can be deactivated )
- Keyboard Backlight : white, On or Off , or Auto ( the 1st press ON , 30 sec OFF)
- Keypad tones (can be disabled )

Readable transponder types :
125 kHz
- HID Prox
- EM4100 , EM4102 , EM4200 or compatible) Unique / Universal

Scope of delivery:
- Outdoor unit / Access host sKey reader -R -w
- Small and fixing material
- Manual (english) Print
- Manual ( German ) as PDF

PDF- Manual

Optional Accessories

Installation cable by meter

Tags's: EM or HID

Door Opener

Controller Network

Controller Compact

Doorbell decoder

Protokoll, Bauform, Relais, :	Klingeltaste, PIN Code, Wasserdicht, Wiegand 26, Wiegand 34
RFID Lesbarer Chiptyp:	125 kHz, EM4102

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

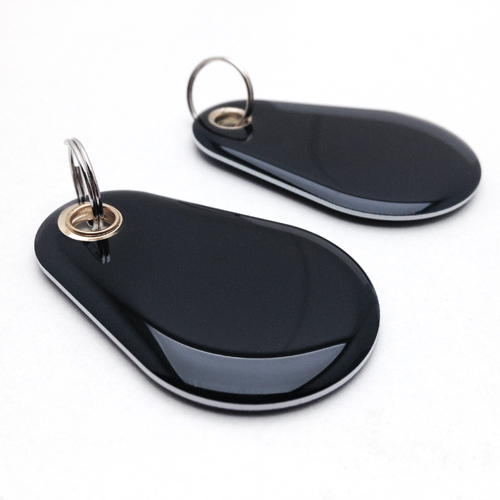

K709-A-Uni-Black
