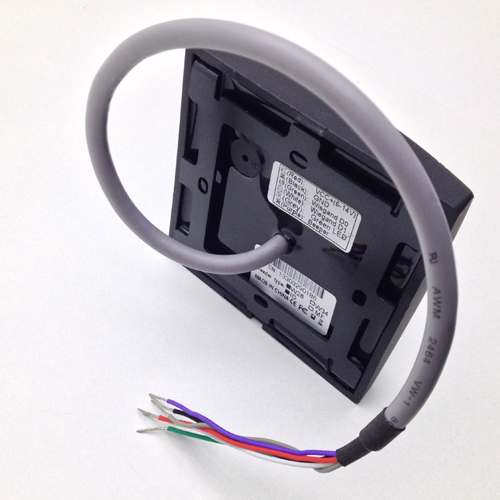

WR8M
Product information "WR8M"
Active RFID reader antenna for contactless universal transponders
Tamper-proof as the evaluation electronics is mounted in the safe area
Sabotage attempts at the antenna are ineffective
LEDs and beeper integrated
Waterproof sealed IP65
Dimensions: 86x86x19mm
Power supply: 12V DC voltage
Power consumption: 45mA

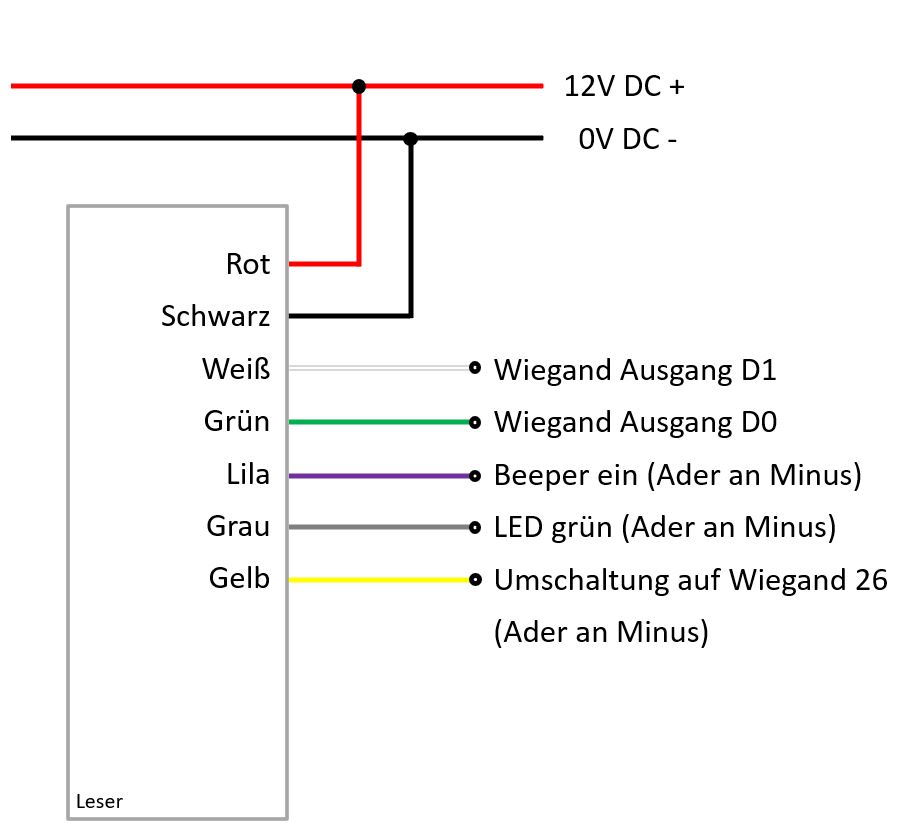

2 cores for data transmission (transmission and reception)
Wiegand34 output format and PIN code 4Bit
The cable length up to the controller can be up to 100m.
Read distance: up to 5cm
Interface: Wiegand 34bit
Transponder types:
- Cards and key fobs: ISO14443 1k or 4k (4 byte and 7byte) transponder cards and key fobs,
Status display: LED red on
Transponder detection: Green LED on, beeper on
Compatible USB readers for access control (Wiegand 34):
ISO14443 1k or 4k
Desfire® EV1 and EV2
Optional accessories:
Installation cable
Network TCP-IP Controller
or
Controller Compact (not compatible with Sboard-II)
| Protokoll, Bauform, Relais, : | Klingeltaste, PIN Code, Wasserdicht, Wiegand 34 |
|---|---|
| RFID Lesbarer Chiptyp: | 13,56 MHz, Desfire®, Mifare® Classic |
