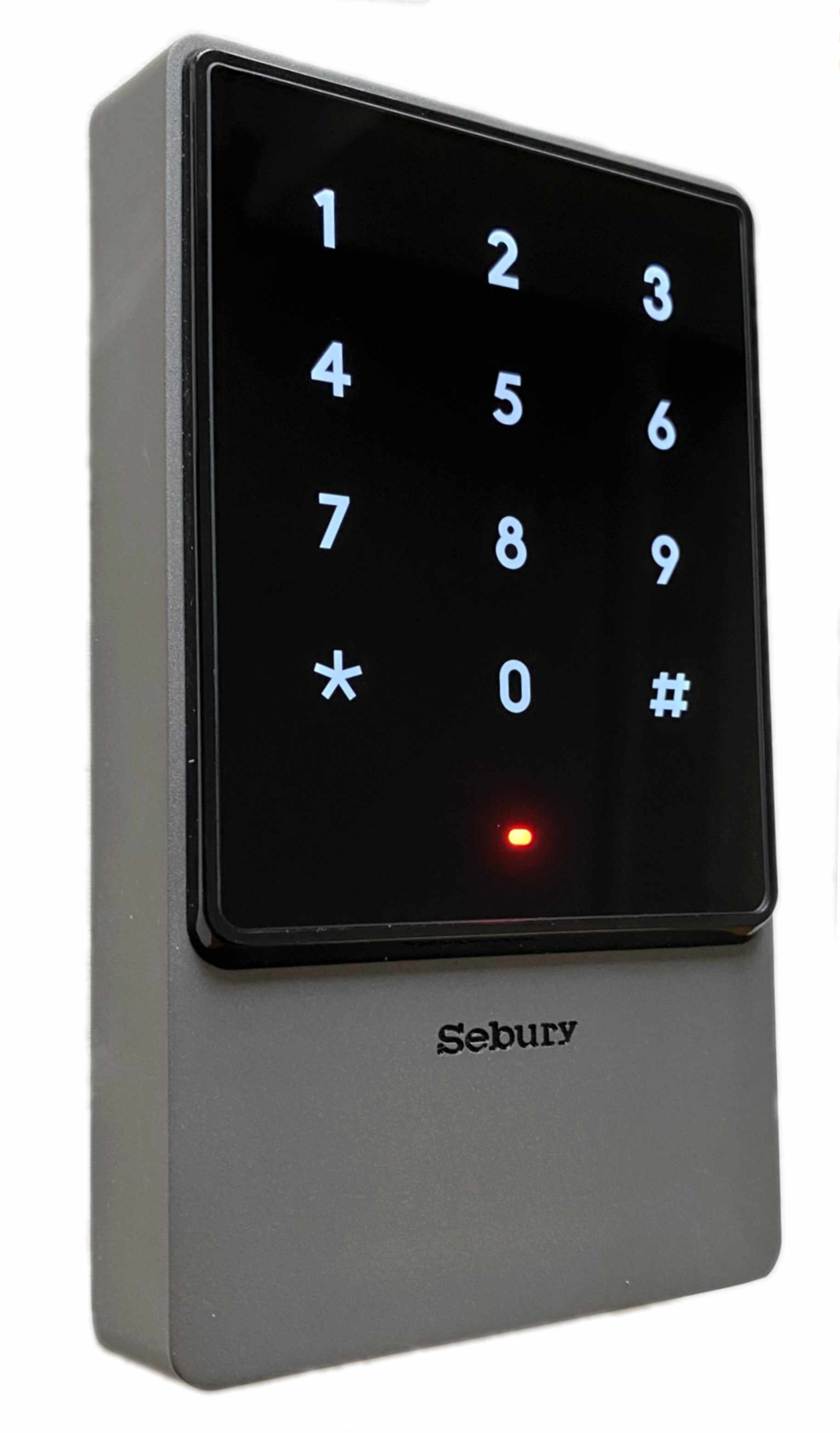

sTouch2 | glass keypad PIN code and dual frequency RFID access control
€89.00*
Total Price incl. Accessories €89.00*
Available, delivery time: 1-3 days
Product number:
sTouch2
Product information "sTouch2 | glass keypad PIN code and dual frequency RFID access control"
Glass touch keypad and dual frequency RFID access control for EM4102 / 4100/4200 and ISO14443 compatible transponders
- Full metal housing with concentrated double reading field through the LED bar and solid PIN code keypad
- The use of plastic on the housing could almost be dispensed with.
- Potted waterproof, suitable for outdoor areas
- Multifunction with PIN code and RFID multi-protocol reader
- Standalone function with relay output
- Reading function connected to Wiegand connection for evaluation units such as Sboard access controllers and SC3000NT. The relay switching then takes place inside, so attempts at sabotage on the wall reader are ineffective.
Technical details:
- PIN code and RFID reader full metal housing
- Glass keypad
- Color: cappuccino black
- Operating mode: standalone or reader (Wiegand)
- Dual frequency 125 khz and 13.56 Mhz
- RFID chip types 125KHz: HID prox, EM4200, EM4102 UID
- RFID chip types 13.56MHz: ISO 14443
- Output format: Wiegand 26 / 34bit
- Housing: waterproof encapsulated IP65
- LED and beep can be switched off
- Power supply: 12V DC, 50mA
- Dimensions: 170 x 83 x 26mm
Download instruction manual: sKey2 instruction manual.pdf
| Protokoll, Bauform, Relais, : | PIN Code, Relais, Wasserdicht, Wiegand 26, Wiegand 34 |
|---|---|
| RFID Lesbarer Chiptyp: | 13,56 MHz, 125 kHz, EM4102, Mifare® Classic |
